F-14 Speedbrake

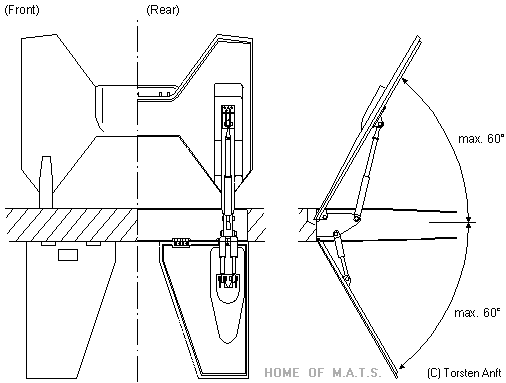

The Tomcat's speedbrake was at first designed with rounded corners all over. Later it was found, that a more rectangle design would reduce production costs and would be as effective as the rounded one.



Click on image-icons to view an enlarged photo:
