Iron & Cluster Bombs







B/U 110 Mk.82 B/U 111 Mk.83 Mk.84

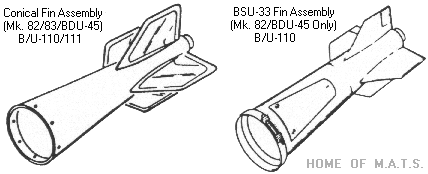

Conical 522 lbs 971 lbs 1970 lbs
BSU-33 fin 527 lbs N/A N/A
BSU-85 fin N/A 1006 lbs N/A

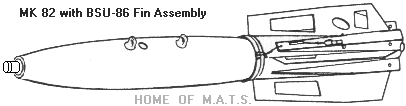

BSU-86 fin 566 lbs N/A N/A
Diameter 11 in 14 in 18 in
Suspension Provision 14 in 14 in 30 in


Click on image-icons to view an enlarged photo:




All graphics Copyright © Torsten Anft
