Practice Bombs



For training purposes, F-14 crews train with practice bombs. These smaller dummy bombs, which are usually painted with blue colours, are less expensive than their explosive brothers but enable the same bomb run practices. Also, the smaller Mk.76 and BDU-33 practice bombs are often used in combination with the Mk.58 Marine Location Marker (see below photo): The MLM is dropped into the water to give pilots an aim point in the water when dropping the practice bombs.

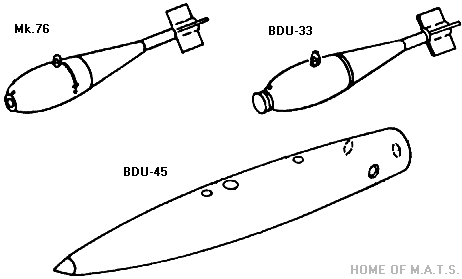

Mk. 76 BDU-33 BDU-45 BDU-48
Weight 25.0 lbs 25.0 lbs 500.0 lbs 10.0 lbs
Length 24.64 in 23.19 in 61.38 in 22.12 in
Diameter 4.00 in 4.00 in 10.75 in 3.86 in
Suspension Provision Single Lug Single Lug 14.0 in Single Lug





Click on image-icons to view an enlarged photo:
