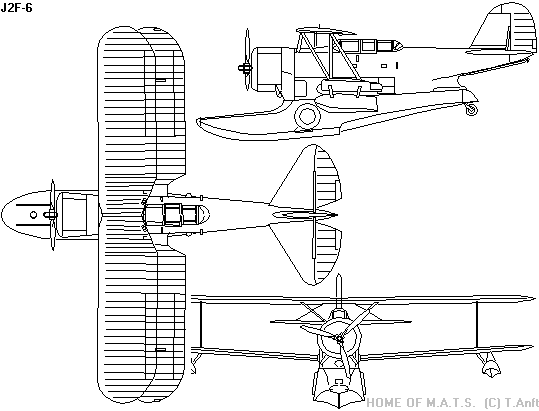

JF & J2F Duck



As the first flying boat of the newly founded Grumman Corporation, the first XJF-1 made its maiden flight on 4 May 1933. The aircraft became known as the Duck, was crewed by a pilot, an observer and an optional radio operator and served as a utility transport onboard aircraft carriers and provided a ship-to-shore link for the Navy.
Until the end of WWII, 632 Ducks in different variants were built by Grumman and the Columbia Aircraft Corporation.

  • Engine One 850 hp Wright R-1820-50
  • Length 34 ft
  • Wingspan 39 ft
  • Height 15 ft 1 in
  • Wing Area 409 sqft
  • Empty Weight 4,300 lbs
  • Max. Weight 6,711 lbs
  • Max. Speed 188 mph
  • Cruise Speed 150 mph
  • Ceiling 27,000 ft
  • Ferry Range 780 miles
