F11F-1 Tiger

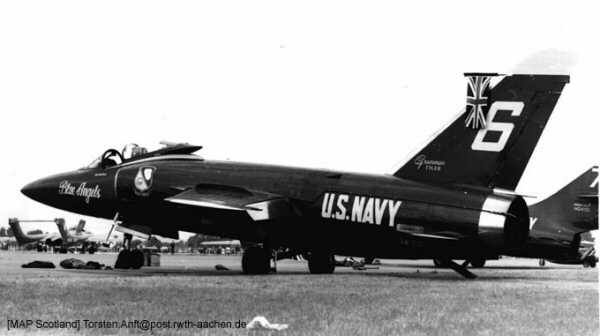

The F11F-1 origins from the Grumman design G-98 and first flew on 30 July 1954. The Tiger operated as a day fighter and is manned by one pilot. Some 201 F11F-1s (199 F11F-1s and 2 F11F-1F) were built until the Navy began to phase out the Tiger during 1959. In 1962 the F11F-1 was redesignated F-11A. From 1957 to 1968 the Navy's Blue Angels aerobatic team flew the Tiger.
Finally, Grumman projected an all-weather capable F11F, designated F12F (BuNo. 143401, 143302). The development was cancelled and the F12F never flew.


  • Engine One Wright J65-W-18 turbojet
  • Thrust 7,450 lbs
  • Length 46 ft 11.25 in
  • Wingspan 31 ft 7.5 in
  • Height 13 ft 2.75 in
  • Wing Area 250 sqft
  • Empty Weight 13,428 lbs
  • Max. Weight 22,160 lbs
  • Max. Speed 750 mph
  • Cruise Speed 577 mph
  • Ceiling 41,900 ft
  • Ferry Range 1,270 miles
  • Armament Four 20 mm guns, four Sidewinder 1A/1C air-to-air missiles
