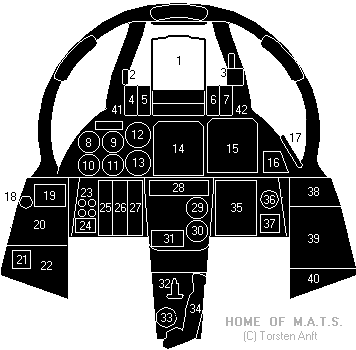

F-14D Pilot's Cockpit




Not displayed are the left and right side console instrumentation which remain basically the same as with the F-14A except for newer systems.

1. Head-Up Display 15. Multi-Function Display 29. Clock
2. Approach Indexer 16. UHF Remote Indicator 30. Brake Pressure Indicator
3. ECM Warning Light & Standby Compass 17. Canopy Jettison Handle 31. Heading/CRS Panel
4. Angle-of-Attack Indicator 18. Emergency Stores Jettison Button 32. Pedal Adjust Handle
5. Air Combat Maneuver Panel 19. Wheels-Flaps Position Indicator 33. Brake Pressure Indicator
6. Air Combat Maneuver Panel 20. Landing Gear Control Panel 34. Control Stick
7. Wing Sweep Indicator 21. Control Surface Position Indicator 35. Fuel Quantity Indicator
8. Vertical Velocity Indicator 22. Fuel Management Panel 36. Liquid Oxygen Quantity Indicator
9. Servopneumatic Altimeter 23. Engine Parameter Indicators 37. Cabin Pressure Altimeter
10. Radar Altimeter 24. Hydraulic Pressure Indicator 38. Arresting Hook Panel
11. Airspeed Mach Indicator 25. Electrical Tachometer Indicator (RPM) 39. Display Control Panel
12. Standby Attitude Indicator 26. Thermocouple Temperature Indicator (TIT) 40. Elevator Lead Panel
13. Bearing Distance Heading Indicator 27. Rate of Flow Indicator (FF) 41. Left Engine Fuel Shut Off Handle
14. Multi-Function Display 28. Armament Control Indicator 42. Right Engine Fuel Shut Off Handle


All graphics Copyright © Torsten Anft
